华为设备综合实验

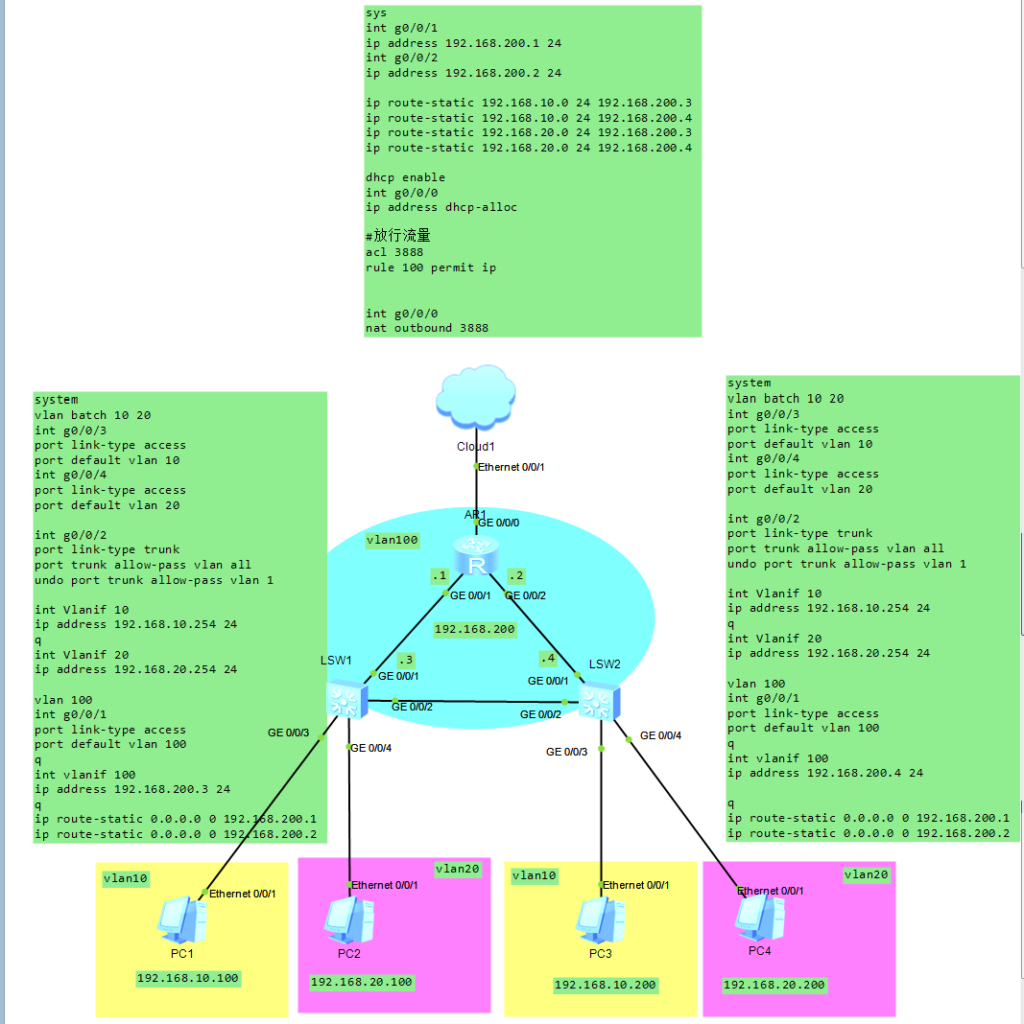

实验1

跨交换机设置VLAN，路由双线

LSW1

system
vlan batch 10 20
int g0/0/3
port link-type access
port default vlan 10
int g0/0/4
port link-type access
port default vlan 20

int g0/0/2
port link-type trunk
port trunk allow-pass vlan all
undo port trunk allow-pass vlan 1

int Vlanif 10
ip address 192.168.10.254 24
q
int Vlanif 20
ip address 192.168.20.254 24

vlan 100
int g0/0/1
port link-type access
port default vlan 100
q
int vlanif 100
ip address 192.168.200.3 24
q
ip route-static 0.0.0.0 0 192.168.200.1
ip route-static 0.0.0.0 0 192.168.200.2

LSW2

system
vlan batch 10 20
int g0/0/3
port link-type access
port default vlan 10
int g0/0/4
port link-type access
port default vlan 20

int g0/0/2
port link-type trunk
port trunk allow-pass vlan all
undo port trunk allow-pass vlan 1

int Vlanif 10
ip address 192.168.10.254 24
q
int Vlanif 20
ip address 192.168.20.254 24

vlan 100
int g0/0/1
port link-type access
port default vlan 100
q
int vlanif 100
ip address 192.168.200.4 24

q
ip route-static 0.0.0.0 0 192.168.200.1
ip route-static 0.0.0.0 0 192.168.200.2

AR1

sys
int g0/0/1
ip address 192.168.200.1 24
int g0/0/2
ip address 192.168.200.2 24

ip route-static 192.168.10.0 24 192.168.200.3
ip route-static 192.168.10.0 24 192.168.200.4
ip route-static 192.168.20.0 24 192.168.200.3
ip route-static 192.168.20.0 24 192.168.200.4

dhcp enable
int g0/0/0
ip address dhcp-alloc

#放行流量
acl 3888
rule 100 permit ip
int g0/0/0
nat outbound 3888

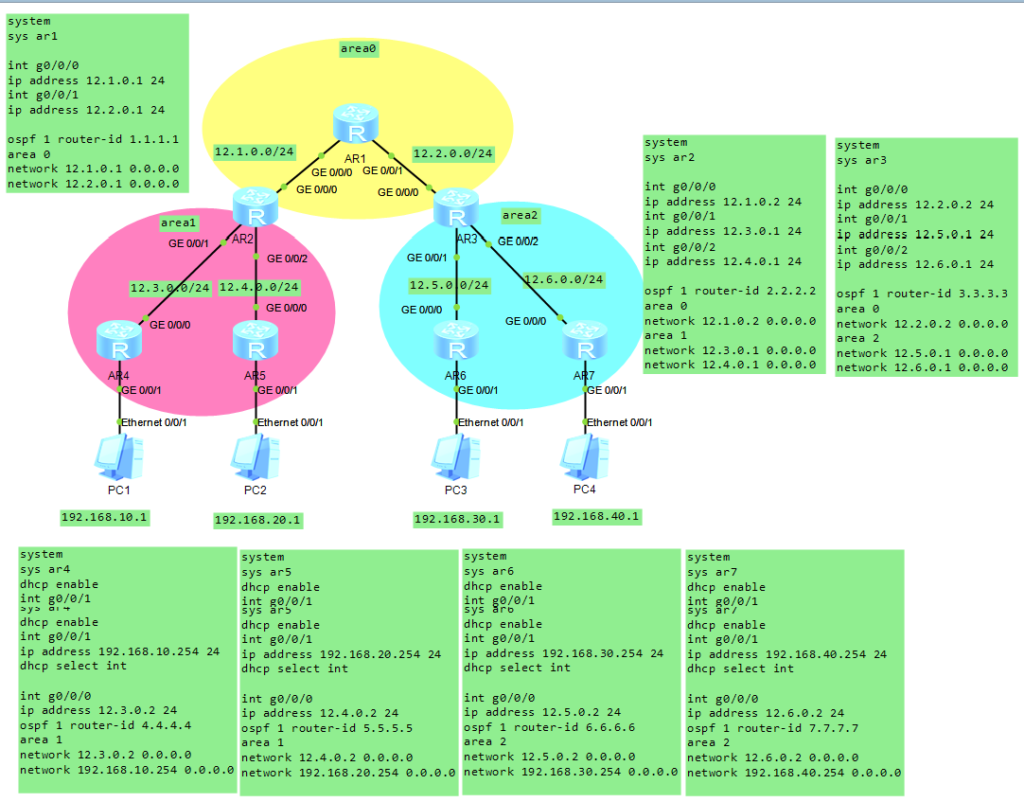

实验2

多路由OSPF，DHCP

AR1

system
sys ar1

int g0/0/0
ip address 12.1.0.1 24
int g0/0/1
ip address 12.2.0.1 24

ospf 1 router-id 1.1.1.1
area 0
network 12.1.0.1 0.0.0.0
network 12.2.0.1 0.0.0.0

AR2

system
sys ar2

int g0/0/0
ip address 12.1.0.2 24
int g0/0/1
ip address 12.3.0.1 24
int g0/0/2
ip address 12.4.0.1 24

ospf 1 router-id 2.2.2.2
area 0
network 12.1.0.2 0.0.0.0
area 1
network 12.3.0.1 0.0.0.0
network 12.4.0.1 0.0.0.0

AR3

system
sys ar3

int g0/0/0
ip address 12.2.0.2 24
int g0/0/1
ip address 12.5.0.1 24
int g0/0/2
ip address 12.6.0.1 24

ospf 1 router-id 3.3.3.3
area 0
network 12.2.0.2 0.0.0.0
area 2
network 12.5.0.1 0.0.0.0
network 12.6.0.1 0.0.0.0

AR4

system
sys ar4
dhcp enable
int g0/0/1
ip address 192.168.10.254 24
dhcp select int

int g0/0/0
ip address 12.3.0.2 24
ospf 1 router-id 4.4.4.4
area 1
network 12.3.0.2 0.0.0.0
network 192.168.10.254 0.0.0.0

AR5

system
sys ar5
dhcp enable
int g0/0/1
ip address 192.168.20.254 24
dhcp select int

int g0/0/0
ip address 12.4.0.2 24
ospf 1 router-id 5.5.5.5
area 1
network 12.4.0.2 0.0.0.0
network 192.168.20.254 0.0.0.0

AR6

system
sys ar6
dhcp enable
int g0/0/1
ip address 192.168.30.254 24
dhcp select int

int g0/0/0
ip address 12.5.0.2 24
ospf 1 router-id 6.6.6.6
area 2
network 12.5.0.2 0.0.0.0
network 192.168.30.254 0.0.0.0

AR7

system
sys ar7
dhcp enable
int g0/0/1
ip address 192.168.40.254 24
dhcp select int

int g0/0/0
ip address 12.6.0.2 24
ospf 1 router-id 7.7.7.7
area 2
network 12.6.0.2 0.0.0.0
network 192.168.40.254 0.0.0.0
